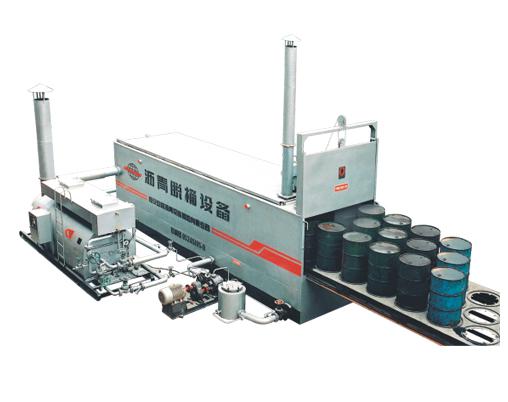

DT Series Drummed Asphalt Melter

EQUIPMENT INTRODUCTION

This equipment was specially designed to decant and heat up drummed asphalt. It is mainly composed of Main Body, Hot Oil Heater, Asphalt Pump Assembly and Filtering System. This equipment was firstly developed and manufactured by our company in the world in 1978 and the patent no. is 95245105.0.

The construction of the video

PERFORMANCE INTRODUCTION

1

High efficiency: it can decant up to 44 numbers of drummed asphalt per batch per hour.
2

High reliability: equipped with automatic-control and hot oil indirectly heating system
3

Protecting environment: closed-construction and minimum pollution.
4

Saving energy: it recycles the hot waste gas (320-450℃) of Burner to heat up and decant drummed asphalt and saves 50% energy sources.
5

It can thoroughly decant asphalt out of drums and ensure the minimum waste of asphalt.
6

Equipped with asphalt filtering system: it can perfectly filter the impurities in asphalt and guarantee quality of asphalt.
7

Equipped conveniently asphalt pumping and circulating system: it can circulate asphalt during heating and pump asphalt into tanks.
8

Easy to assemble and disassemble.

TECHNICAL PARAMETERS

Model	DT3	DT6	DT8
Productivity (t/h)	3-4	6-8	8-10
Asphalt Temp.(℃)	120-140	120-140	120-140
Number of Drums per Batch	20	32	44
Thermal Capacity of Hot Oil Heater(kcal/h)	30×10⁴	50×10⁴	60×10⁴
Thermal Oil Temp. (℃)	200-240	200-240	200-240
Volume of Asphalt Reservoirs (L)	9000	14000	18000
Total Power (kW)	36	38	38
Total Weight (t)	17	22	28
Overall Dimensions of Main Body (L×W×H) (mm)	8000×1750×2560	9050×2550×2560	12000×2550×2560
Overall Dimensions of Hot Oil Heater	4500×1700×2300	5000×1700×2300	5500×1700×2300
